Water Geotechnical Investigation 400m Core Drill Machine

Name: Water Geotechnical Investigation 400m Core Drill Machine
Brand: JCDRILL
Price: 1 USD

China Water Geotechnical Investigation 400m Core Drill Machine wholesale

Brand Name : JCDRILL

Model Number : JXY400

Certification : ISO,CE

Place of Origin : China

MOQ : 1Set

Price : Negotation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 2000set/year

Delivery Time : 1week

Packaging Details : Standard Export package

Drilling Depth : 0-400m

Drilling Diameter : 75-600mm

Drill Pipe Length : 4.2m

Usage : water well drilling

Drilling Methold : DTH Drilling & Mud Drilling

Rotation Speed : 0-80rpm

Mud Pump : BW250/BW450

Warranty : 1year

Contact Now

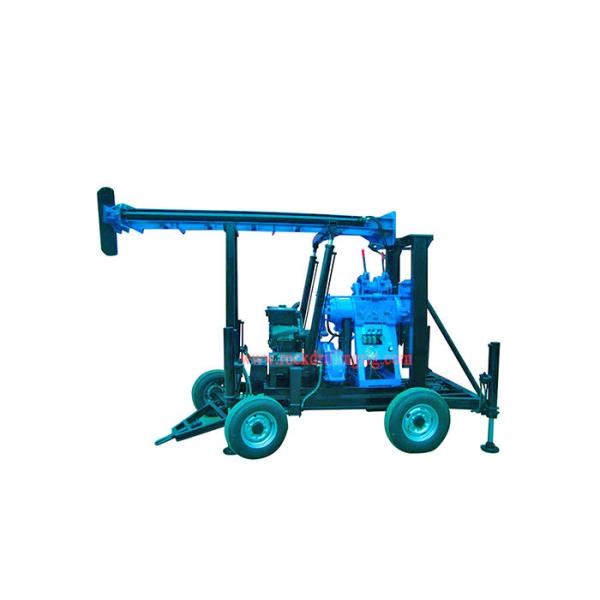

Hydraulic Core Drill Machine for Water or Geotechnical Investigation (JCDRILL)

The type of trailer mounted drilling rig is a small drilling rig for 400m deep, widely applied for Geology

general check exploration, Earth physics exploration, Road and high layer building ground survey, Water

Bore Well, blast opening and so on, drilling engineering, etc.

Water Geotechnical Investigation 400m Core Drill Machine

Specification

Drilling depth	m	75	219	273	400	600
Drilling Dia.	mm	400	160	130	100	30
Open hole Dia.	mm	600
End hole Dia.	mm	75
Drilling rod	mm	42,50,60,76
Drilling angle		0-90°
Rotary Spindle
Spindle forward speed	r/min	50-1150
Spindle reverse speed	r/min	29-137
Spindle stroke	mm	600
Spindle inner diameter	mm	62
Spindle lifting capacity	Kg	6000
Spindle Max.Torque	N/M	2800
Main Winch (Hydraulic)
Single line lifting speed	m/s	0.5-1.9
Tightrope diameter	mm	14
Hoist single line lifting capacity	Kg	4000
Roller diameter	mm	300
Roller cubic measure	m	50
Tools Winch
Tightrope diameter	mm	6
Roller diameter	mm	140
Roller cubic measure	m	450
Drilling rig Power(choose one between the following two)
Diesel engine	kw/hp	17.6/24
Electric motor	KW	Y160L,18.5kw
Trailer
Loading Capacity	T	8.5
Weight&Size
Weight	kg	3000
Dimension	mm	3980×1950×2750

Application

Water Geotechnical Investigation 400m Core Drill Machine

Advantage

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,

in this system, technology date and problem solve solution and preventive measures will be provided in any

maintain project, all the spare parts will be used in new OEM products with installation instructions, packing

list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order

confirmation, last for the working life of the equipment.
